Types of Stepper Motors: Permanent Magnet, VR & Hybrid Motor Comparison Guide

Stepper motors are among the most widely used motion control devices in industrial automation, CNC machinery, robotics, medical equipment, semiconductor systems, and precision positioning applications. Unlike conventional DC motors, stepper motors move in discrete angular increments, allowing precise open-loop position control without requiring feedback systems in many applications.

Understanding the different types of stepper motors is essential for engineers designing motion systems that require accurate positioning, repeatability, low-speed torque, and cost-effective control architectures.

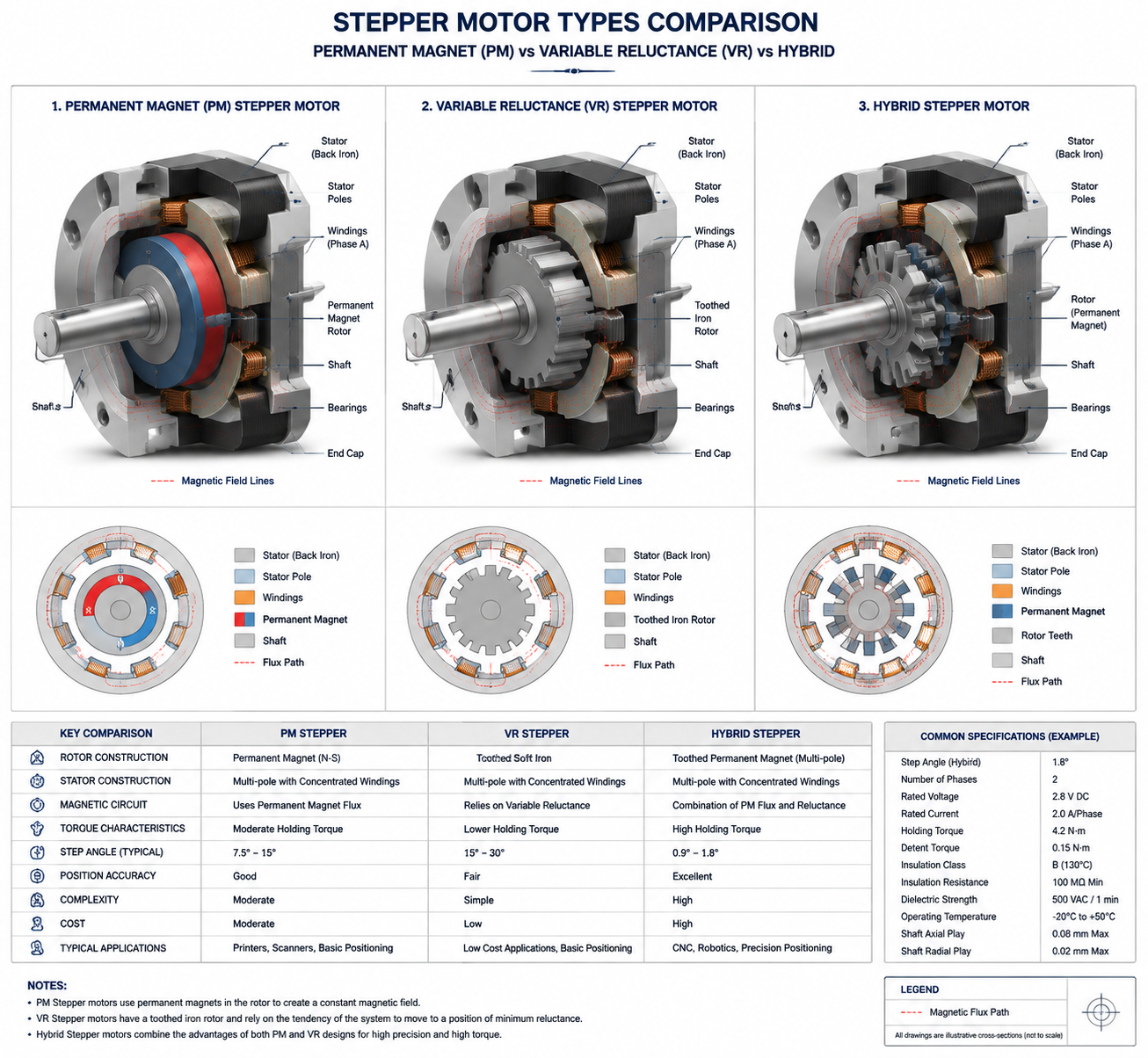

The three primary stepper motor technologies used in industry are:

• Permanent Magnet (PM) Stepper Motors

• Variable Reluctance (VR) Stepper Motors

• Hybrid Stepper Motors

Each technology uses different electromagnetic operating principles and offers unique advantages in torque generation, positioning accuracy, efficiency, speed capability, and cost.

For a foundational understanding of the technology discussed in this article, engineers can review:

• How Stepper Motors Work

What Are the Main Types of Stepper Motors?

Stepper motors are generally classified according to rotor construction and magnetic operating principle. The three major categories are:

Among these technologies, the hybrid stepper motor has become the dominant solution in industrial automation due to its superior torque density, fine step resolution, and excellent positioning repeatability.

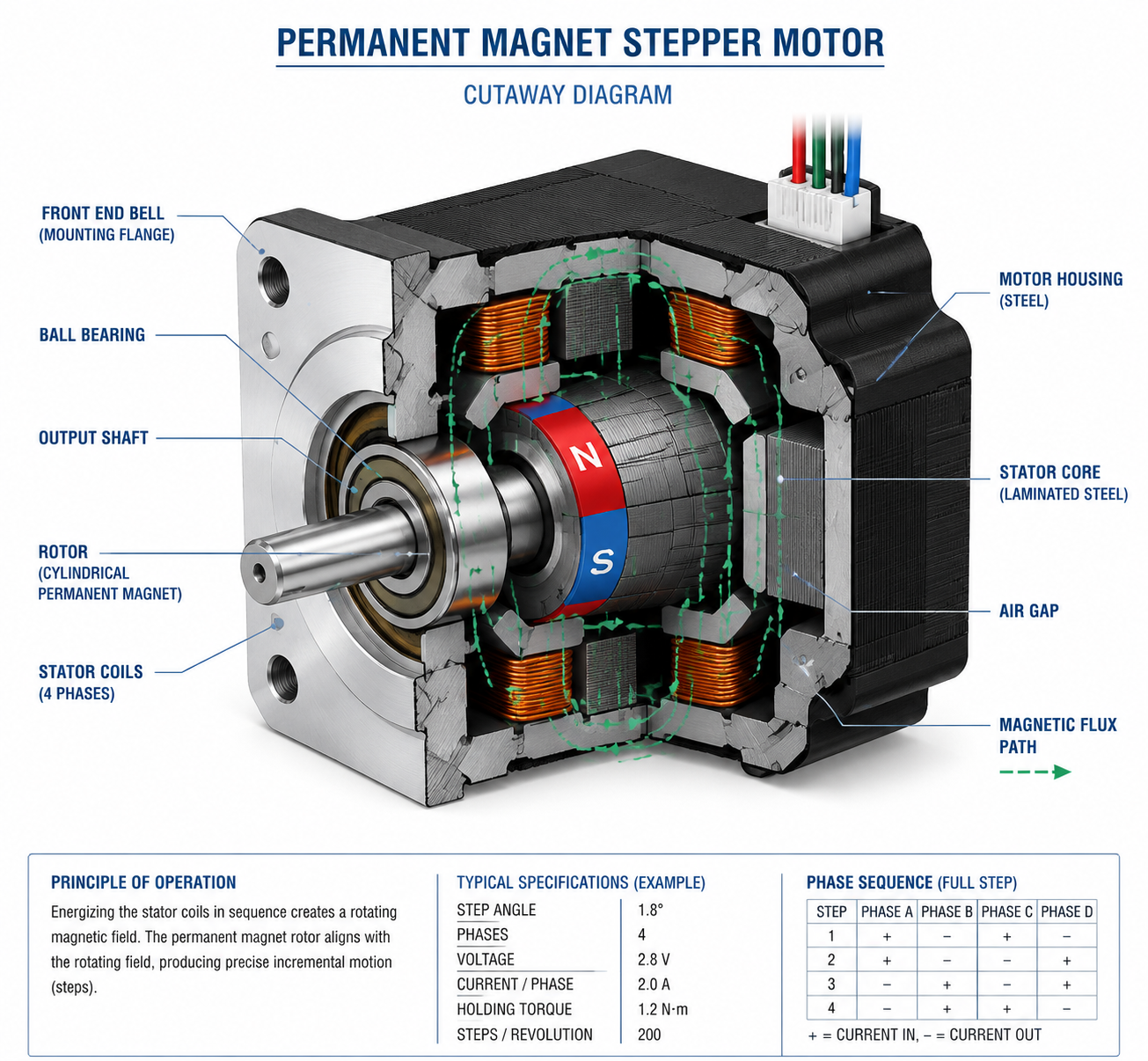

Permanent Magnet (PM) Stepper Motors

Operating Principle of Permanent Magnet Stepper Motors

A permanent magnet stepper motor uses a rotor made from permanent magnetic material. The stator contains electromagnetic windings that generate magnetic fields when energized sequentially by the motor driver.

As stator phases are energized, the rotor aligns itself with the magnetic field generated by the stator poles. Sequential excitation produces incremental rotational movement.

The step angle and working principle directly determine the positioning resolution and are key differentiators between motor types.

PM stepper motors typically use larger step angles than hybrid designs, commonly:

• 7.5° per step

• 15° per step

• 18° per step

Because of their relatively simple construction, PM stepper motors are economical and easy to manufacture.

Construction Features

Characteristics of PM Stepper Motors

Permanent magnet stepper motors offer several performance advantages:

• Good low-speed torque

• Simple control architecture

• Lower manufacturing cost

• Relatively quiet operation

• Good holding torque for small systems

However, they also have limitations:

• Larger step angles reduce positioning resolution

• Lower torque density compared with hybrid motors

• Reduced high-speed performance

• Lower dynamic response capability

Typical Industrial Applications

Permanent magnet stepper motors are commonly used in:

• Printers

• Small medical pumps

• Consumer electronics

• Automotive HVAC actuators

• Office automation equipment

• Simple valve control systems

PM stepper motors are particularly suitable for low-cost applications where extremely high positioning accuracy is not required.

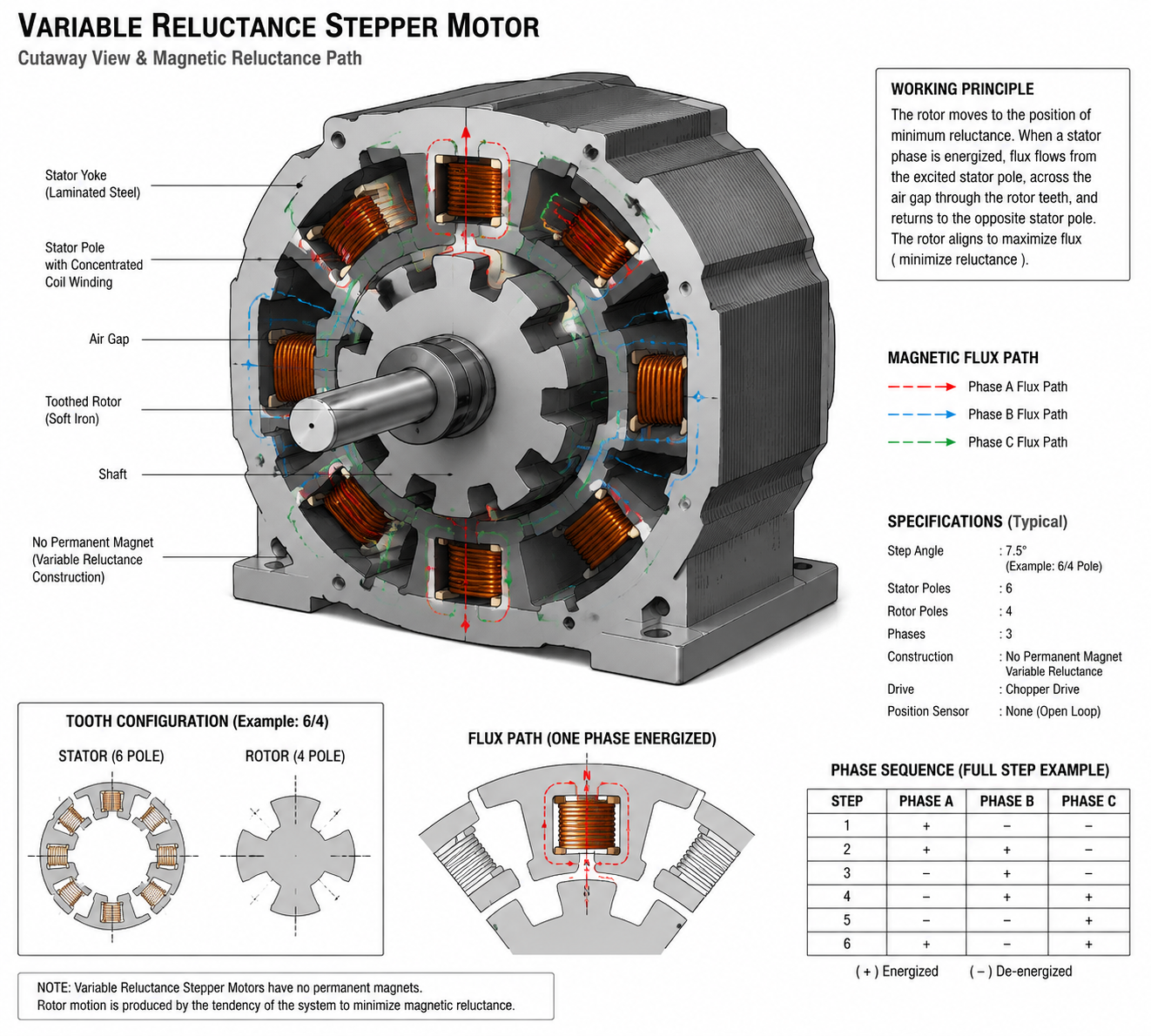

Variable Reluctance (VR) Stepper Motors

Operating Principle of Variable Reluctance Stepper Motors

A variable reluctance stepper motor operates according to the principle of minimum magnetic reluctance.

Unlike PM motors, VR stepper motors use a soft iron rotor without permanent magnets. The rotor contains multiple teeth, while the stator contains energized electromagnetic poles.

When a stator phase is energized, the rotor automatically aligns itself with the magnetic path having the lowest reluctance. Sequential excitation causes the rotor to rotate in discrete step increments.

Construction Features

Characteristics of VR Stepper Motors

Variable reluctance stepper motors provide several unique operating characteristics:

• Very fast acceleration capability

• Low rotor inertia

• High stepping rates

• Excellent dynamic response

• Simplified rotor structure

However, VR motors also exhibit disadvantages:

• Low holding torque

• Lower torque output overall

• Higher vibration levels

• Reduced torque at low speeds

• Complex magnetic design requirements

Step Resolution

VR stepper motors can achieve relatively fine step angles depending on rotor tooth geometry and stator pole configuration. Typical step angles include:

• 5°

• 2°

• 1.8°

Because rotor inertia is extremely low, VR motors can accelerate rapidly in applications requiring high stepping frequencies.

Typical Industrial Applications

Variable reluctance motors are less common in modern industrial automation but remain useful in:

• High-speed positioning systems

• Light-load indexing mechanisms

• Scientific instrumentation

• Optical scanning equipment

• Specialized laboratory systems

Today, many VR applications have gradually transitioned toward hybrid stepper motor technologies due to improved torque performance and better controllability.

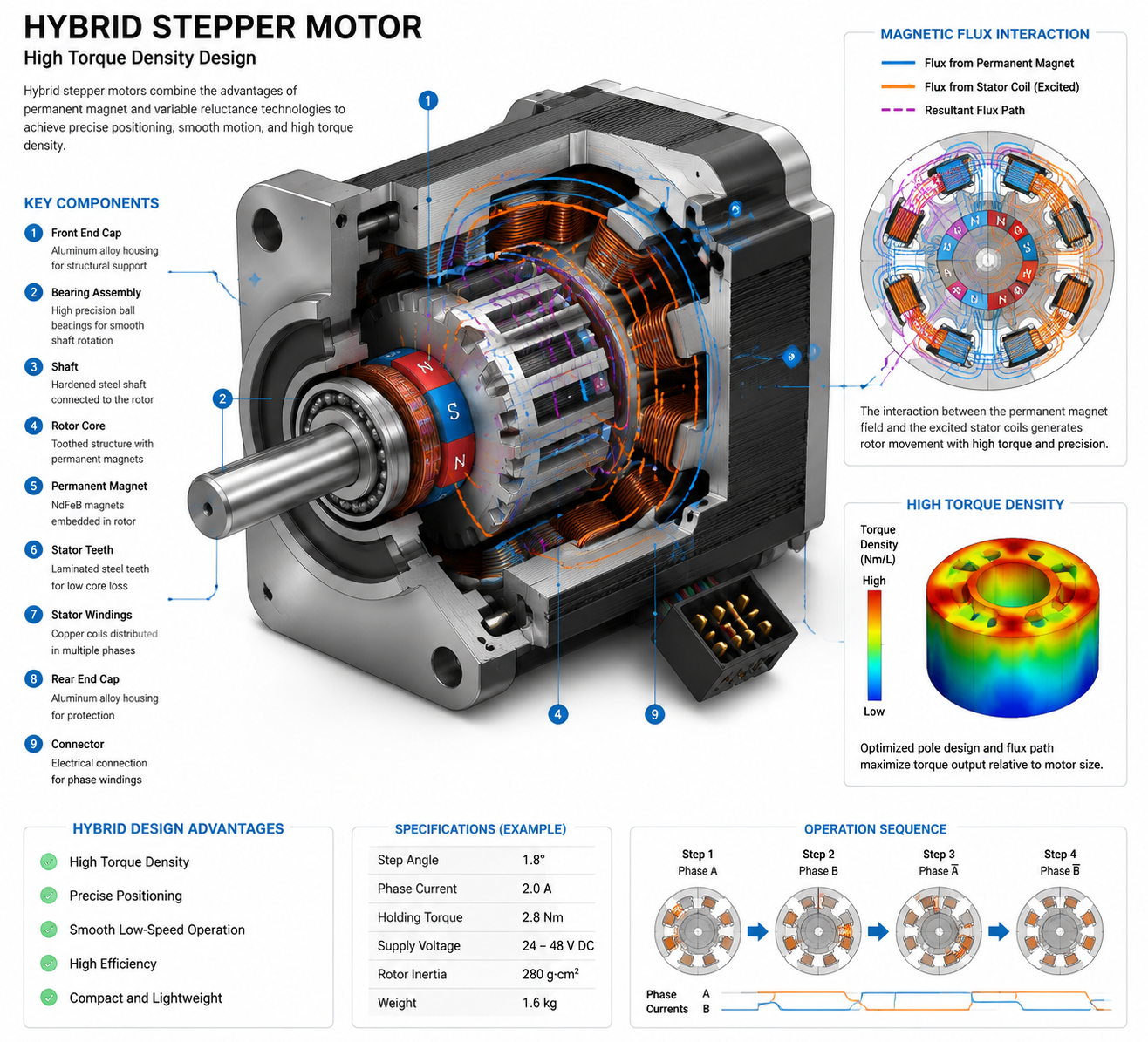

Hybrid Stepper Motors

Operating Principle of Hybrid Stepper Motors

The hybrid stepper motor combines the operating principles of both permanent magnet and variable reluctance stepper motors.

It uses:

• A permanent magnet rotor core

• Precision-machined rotor teeth

• Toothed stator poles

This design allows hybrid motors to achieve:

• High magnetic flux density

• Fine positioning resolution

• Excellent holding torque

• High torque-to-size ratio

The rotor usually consists of two toothed cups magnetized axially with opposite polarities. The tooth offset between rotor halves creates highly accurate electromagnetic positioning.

Why Hybrid Stepper Motors Are Different

Hybrid motors integrate the advantages of both PM and VR technologies:

Step Angle and Resolution

Hybrid stepper motors commonly achieve very fine step angles:

• 1.8° (200 steps/revolution)

• 0.9° (400 steps/revolution)

• 0.72°

• 0.45°

With microstepping drivers, positioning resolution can be increased dramatically.

For example:

Performance Characteristics

Hybrid stepper motors provide:

• Excellent low-speed torque

• High holding torque

• Accurate repeatability

• Strong positioning stability

• Good compatibility with closed-loop systems

• Excellent controllability

These characteristics make hybrid stepper motors ideal for modern industrial automation.

Common NEMA Frame Sizes

Industrial Applications of Hybrid Stepper Motors

Hybrid stepper motors dominate applications requiring precision and reliability:

• CNC machines

• Laser cutting systems

• Industrial robots

• Pick-and-place equipment

• Semiconductor manufacturing systems

• Textile machinery

• Packaging automation

• Medical imaging systems

• Linear motion stages

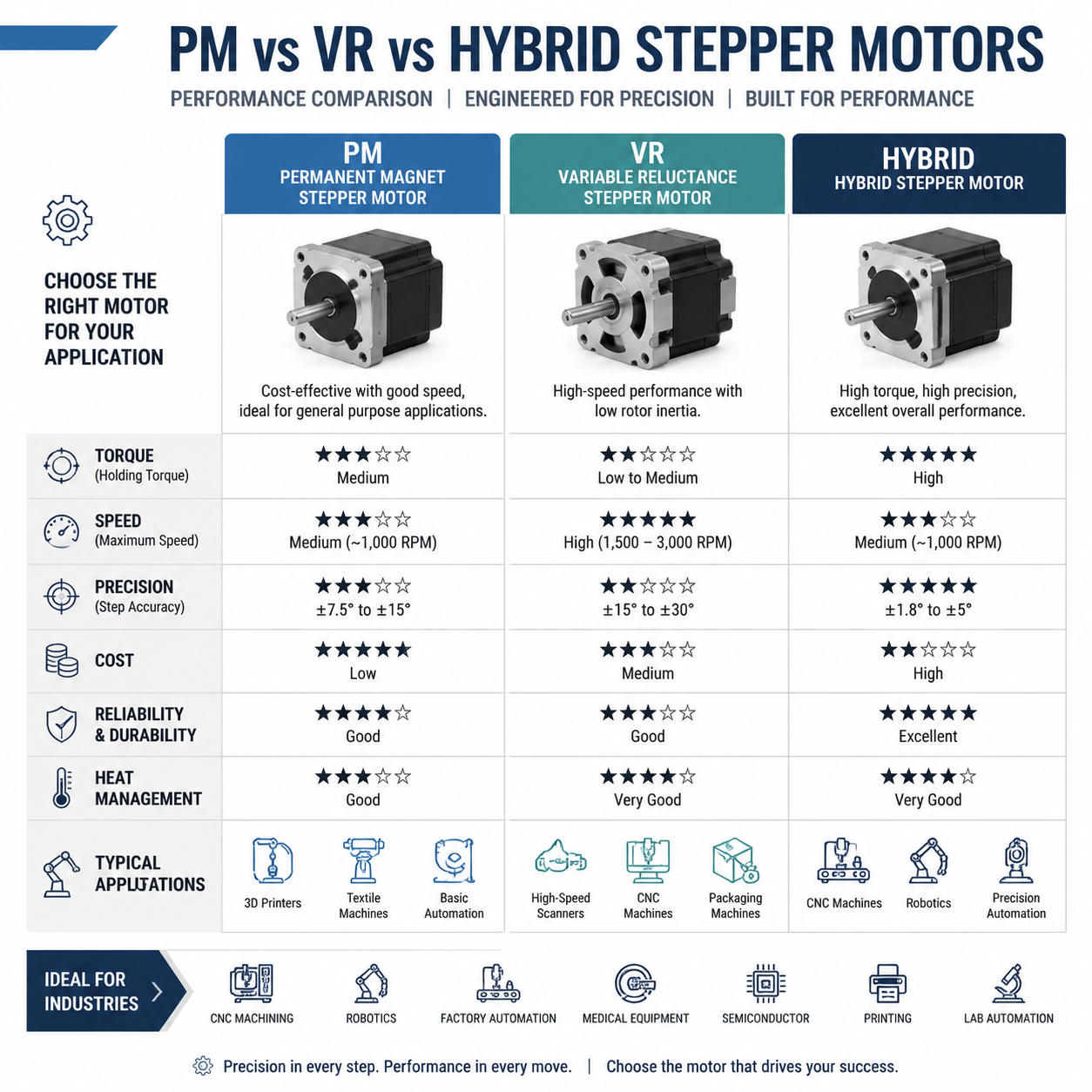

PM vs VR vs Hybrid Stepper Motors Comparison

The following stepper motor types comparison summarizes the key engineering differences among PM, VR, and hybrid technologies.

Advantages and Disadvantages of Each Type

Permanent Magnet Stepper Motor Advantages

• Low manufacturing cost

• Simple design

• Good low-speed torque

• Easy to control

• Compact construction

Permanent Magnet Stepper Motor Disadvantages

• Lower precision

• Larger step angles

• Limited high-speed performance

• Reduced torque density

Variable Reluctance Stepper Motor Advantages

• Low rotor inertia

• Fast acceleration

• Excellent dynamic response

• Simple rotor construction

Variable Reluctance Stepper Motor Disadvantages

• Low holding torque

• Higher vibration

• Lower efficiency

• Limited industrial adoption

Hybrid Stepper Motor Advantages

• High torque output

• Excellent positioning accuracy

• Fine step resolution

• High repeatability

• Strong low-speed performance

• Wide industrial compatibility

• Excellent microstepping performance

Hybrid Stepper Motor Disadvantages

• Higher manufacturing cost

• More complex magnetic structure

• Requires optimized driver tuning

Industrial Applications of Different Stepper Motors

Consumer Electronics and Office Equipment

Permanent magnet stepper motors remain widely used in:

• Printers

• Copiers

• Camera systems

• HVAC actuators

• Ticket vending machines

Their low cost and adequate positioning capability make them suitable for medium-precision consumer products.

Scientific and High-Speed Positioning Systems

Variable reluctance motors are occasionally selected for:

• Optical scanners

• Precision indexing tables

• Research instrumentation

• High-speed actuator systems

These systems benefit from the low inertia and rapid acceleration capability of VR designs.

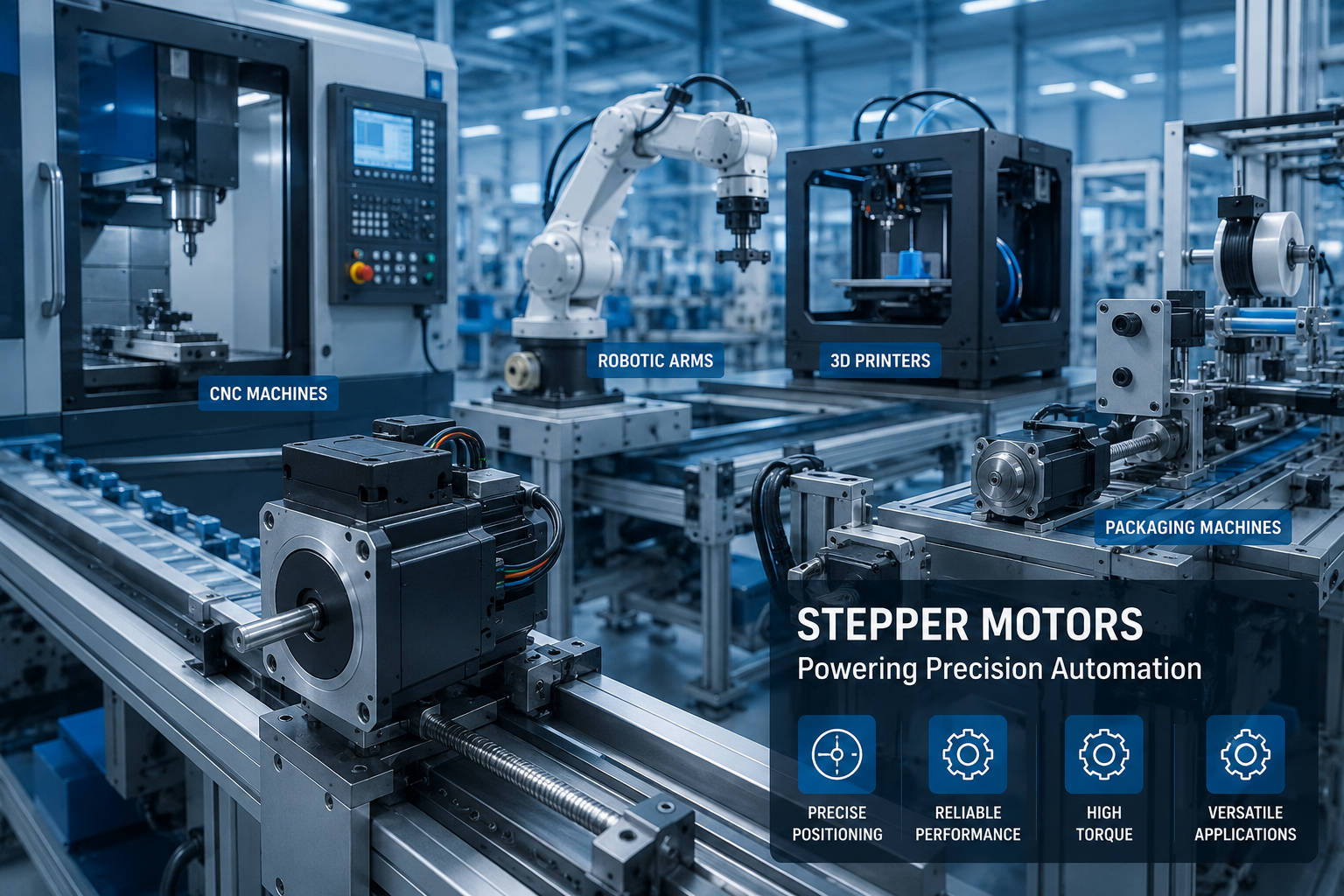

Industrial Automation and CNC Machinery

Hybrid stepper motors dominate:

• CNC routers

• 3D printers

• Industrial robots

• Automated assembly systems

• Packaging machinery

• Textile equipment

• Semiconductor manufacturing systems

• Laboratory automation

Modern industrial motion systems require:

• High repeatability

• Stable torque output

• Reliable low-speed operation

• Accurate indexing

• Strong holding torque

Hybrid stepper motors satisfy these requirements better than PM or VR technologies.

Why Hybrid Stepper Motors Dominate Industrial Automation

In modern automation systems, engineers increasingly prefer hybrid stepper motors because they provide the best balance between:

• Torque

• Precision

• Cost

• Reliability

• Ease of control

Higher Torque Density

Hybrid motors generate significantly higher torque compared with PM and VR designs of similar size. This allows OEM equipment manufacturers to reduce motor frame size while maintaining performance.

Superior Positioning Accuracy

With standard 1.8° or 0.9° step angles and advanced microstepping drivers, hybrid motors provide precise motion control for high-end automation systems.

Excellent Holding Torque

Industrial systems frequently require motors to hold position under static load conditions. Hybrid motors provide excellent holding torque without requiring closed-loop servo systems in many applications.

Strong Compatibility with Digital Drivers

Modern DSP-based stepper drivers significantly improve:

• Motion smoothness

• Resonance suppression

• Microstepping accuracy

• Current control efficiency

• Noise reduction

Hybrid motors integrate exceptionally well with these advanced drive technologies.

Broad Industrial Standardization

Hybrid stepper motors are highly standardized across:

• NEMA frame sizes

• Mounting dimensions

• Driver compatibility

• Motion controller ecosystems

This simplifies OEM integration and replacement logistics.

How to Choose the Right Stepper Motor Type

Selecting the appropriate stepper motor technology requires evaluating:

• Torque requirements

• Positioning accuracy

• Speed range

• Load inertia

• Cost targets

• Environmental conditions

• Duty cycle

Choose PM Stepper Motors When:

• Cost is the primary concern

• Precision requirements are moderate

• Load torque is relatively low

• Simple control systems are sufficient

Choose VR Stepper Motors When:

• Extremely rapid acceleration is required

• Rotor inertia must be minimized

• Applications require high stepping frequencies

• Holding torque is less important

Choose Hybrid Stepper Motors When:

• High precision is required

• Industrial reliability is critical

• Applications require high holding torque

• CNC or robotic systems are involved

• Smooth microstepping operation is necessary

• Long operational life is essential

Engineering Selection Parameters

FAQ

What are the main types of stepper motors?

The three main types of stepper motors are permanent magnet (PM), variable reluctance (VR), and hybrid stepper motors. Each type differs in rotor structure, torque characteristics, positioning accuracy, and industrial application suitability.

What is the difference between hybrid vs PM stepper motor designs?

The primary difference in hybrid vs PM stepper motor design is rotor construction. Hybrid motors combine permanent magnets with toothed rotor geometry, enabling higher torque, finer step resolution, and better positioning accuracy than standard PM motors.

Why are hybrid stepper motors more popular in industrial automation?

Hybrid stepper motors offer superior torque density, accurate positioning, excellent holding torque, and strong compatibility with microstepping drivers, making them ideal for CNC machines, robotics, and precision automation systems.

Are variable reluctance stepper motors still used today?

Yes, but they are less common than hybrid designs. VR motors are still used in specialized applications requiring low inertia and rapid acceleration.

Which stepper motor type provides the highest precision?

Hybrid stepper motors provide the highest positioning precision due to their fine toothed rotor structure and smaller step angles.

Can stepper motors replace servo motors?

In many low-to-medium speed positioning applications, hybrid stepper motors can replace servo motors because they provide accurate open-loop positioning with lower system cost and simplified control architecture.

Conclusion

Understanding the different types of stepper motors is critical for selecting the correct motion control solution in industrial automation systems.

Permanent magnet stepper motors provide economical solutions for low-cost positioning applications. Variable reluctance motors deliver rapid acceleration and low rotor inertia for specialized systems. However, the hybrid stepper motor has become the dominant industrial standard because it combines high torque density, fine positioning resolution, strong holding torque, and excellent controllability.

For OEM machinery manufacturers, robotics designers, and automation engineers, hybrid stepper motors provide the best overall balance of performance, reliability, and cost-effectiveness.
