Product Name: Lead Screw Stepper Motor – Apple Production Line Spare Part
Brand: HANDERBURG MOTOR CO., LTD.

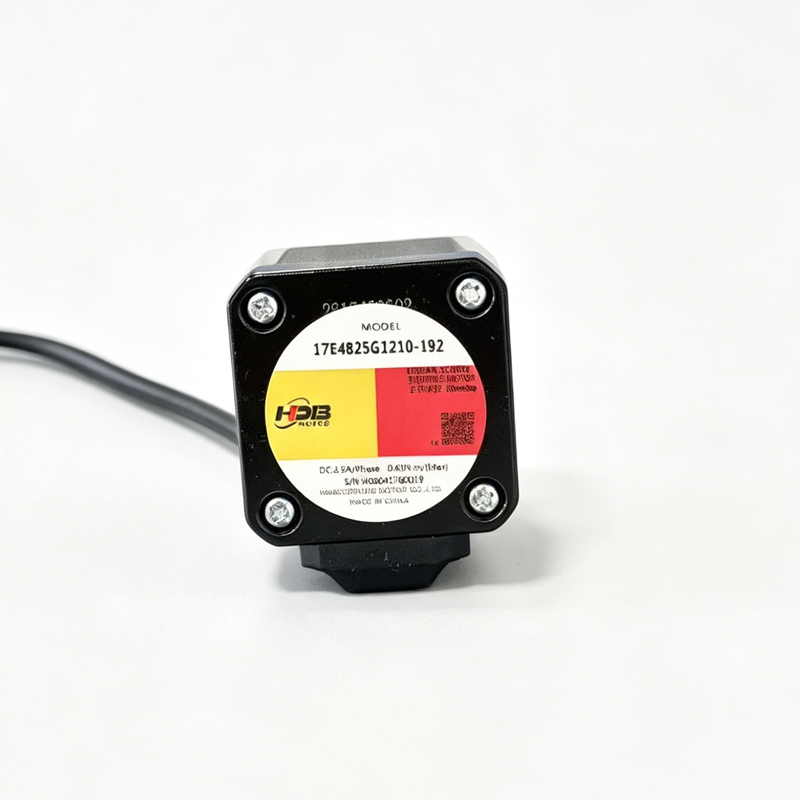

Model: (Refer to motor label; 2-Phase 1.8V/STEP, Holding torque 0.43N·m, Lead screw spec as below)
Key Features:

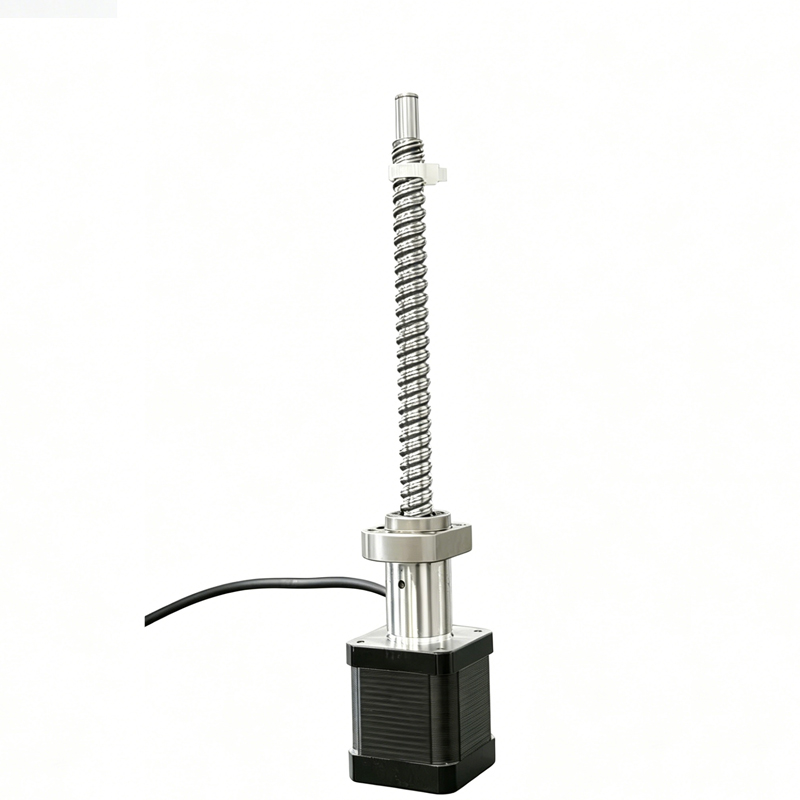

Compact 2‑phase stepper motor with integrated lead screw
Designed for precision linear actuation in automated production equipment
Used as a critical component in Apple assembly lines
Technical Specifications:
| Parameter | Value |
|---|---|
| Number of Phases | 2 |
| Insulation Resistance | ≥100 MΩ |
| Basic Step Angle | 1.8° |
| Insulation Class | B |
| Step Angle Accuracy (no load) | ≤ ±0.09° |
| Operating Temperature Range | -20°C ~ +50°C |
| Rated Current | 2.5 A |
| Operating Humidity Range | 20% RH ~ 90% RH |
| Resistance per Phase | 1.0 Ω ±10% |
| Storage Temperature Range | -20°C ~ +70°C |
| Inductance per Phase | 1.7 mH ±20% |
| Storage Humidity Range | 15% RH ~ 95% RH |
| Holding Torque | 0.43 N·m |
| Lead Screw Length | 19.2 mm |
| Lead Screw Diameter | Φ1.2 mm |
| Lead (pitch) | 10 mm |
| Step Length (linear per full step) | 0.05 mm |
| Lifetime (hours) | ≥5000 H |
| Temperature Rise | ≤80 K |
| Dielectric Strength | 500 V.A.C. |
| Insulation Voltage | 500 V.A.C. |
| Motor Lead Wire Color & Connection | Black (A), Green (A), Red (A) – Actual wire order may vary; refer to motor label. |
| Initial Rotation Direction | Clockwise when viewing from mounting surface, following the excitation sequence on the label |
Application:
Ap*-ple production line – precision linear motion, part positioning, screw-driven actuation modules.
Note:
The motor is rated for continuous operation under rated current. Lead wire colors and pin assignment are subject to the physical label on the motor.
