NEMA23, Extemal Nut Linear Stepper Motor Actuator, Ball Screw, The body length is available in 45mm, 57mm and79mm options. The resolution range is from 0.01 to 0.127mm. The maximum thrust can reach up to 1050N. Thescrew length range is from 100 to 400mm.If you need the technical parameter drawing, please contact us, and we will send it to you as soon as possible.

Item	Rated Current (A)	Length (mm)	Screw Diameter (mm)	Screw Lead (mm)	Screw Length (mm)	Rated Thrust (N @ 300RPM)	Phase	Linear Travel per Step (mm)
B23E45210B10-100-G	2.1	45	10	2	100	680	2	0.01
B23E45210B10-150-G	2.1	45	10	2	150	680	2	0.01
B23E45210B10-200-G	2.1	45	10	2	200	680	2	0.01
B23E45210B10-250-G	2.1	45	10	2	250	680	2	0.01
B23E45210B10-300-G	2.1	45	10	2	300	680	2	0.01
B23E45210B11-100-G	2.1	45	10	4	100	340	2	0.02
B23E45210B11-150-G	2.1	45	10	4	150	340	2	0.02
B23E45210B11-200-G	2.1	45	10	4	200	340	2	0.02
B23E45210B11-250-G	2.1	45	10	4	250	340	2	0.02
B23E45210B11-300-G	2.1	45	10	4	300	340	2	0.02
B23E57220B10-100-G	2.2	57	10	2	100	750	2	0.01
B23E57220B10-150-G	2.2	57	10	2	150	750	2	0.01
B23E57220B10-200-G	2.2	57	10	2	200	750	2	0.01
B23E57220B10-250-G	2.2	57	10	2	250	750	2	0.01
B23E57220B10-300-G	2.2	57	10	2	300	750	2	0.01
B23E57220B11-100-G	2.2	57	10	4	100	350	2	0.02
B23E57220B11-150-G	2.2	57	10	4	150	350	2	0.02
B23E57220B11-200-G	2.2	57	10	4	200	350	2	0.02
B23E57220B11-250-G	2.2	57	10	4	250	350	2	0.02
B23E57220B11-300-G	2.2	57	10	4	300	350	2	0.02
B23E57220B14-100-G	2.2	57	12	2	100	750	2	0.01
B23E57220B14-150-G	2.2	57	12	2	150	750	2	0.01
B23E57220B14-200-G	2.2	57	12	2	200	750	2	0.01
B23E57220B14-250-G	2.2	57	12	2	250	750	2	0.01
B23E57220B14-300-G	2.2	57	12	2	300	750	2	0.01
B23E57220B15-100-G	2.2	57	12	5	100	225	2	0.025
B23E57220B15-150-G	2.2	57	12	5	150	225	2	0.025
B23E57220B15-200-G	2.2	57	12	5	200	225	2	0.025
B23E57220B15-250-G	2.2	57	12	5	250	225	2	0.025
B23E57220B15-300-G	2.2	57	12	5	300	225	2	0.025
B23E57220B16-100-G	2.2	57	12	10	100	112	2	0.05
B23E57220B16-150-G	2.2	57	12	10	150	112	2	0.05
B23E57220B16-200-G	2.2	57	12	10	200	112	2	0.05
B23E57220B16-250-G	2.2	57	12	10	250	112	2	0.05
B23E57220B16-300-G	2.2	57	12	10	300	112	2	0.05
B23E79300B10-100-G	3	79	10	2	100	900	2	0.01
B23E79300B10-150-G	3	79	10	2	150	900	2	0.01
B23E79300B10-200-G	3	79	10	2	200	900	2	0.01
B23E79300B10-250-G	3	79	10	2	250	900	2	0.01
B23E79300B10-300-G	3	79	10	2	300	900	2	0.01
B23E79300B11-100-G	3	79	10	4	100	492	2	0.02
B23E79300B11-150-G	3	79	10	4	150	492	2	0.02
B23E79300B11-200-G	3	79	10	4	200	492	2	0.02
B23E79300B11-250-G	3	79	10	4	250	492	2	0.02
B23E79300B11-300-G	3	79	10	4	300	492	2	0.02
B23E79300B14-100-G	3	79	12	2	100	900	2	0.01
B23E79300B14-150-G	3	79	12	2	150	900	2	0.01
B23E79300B14-200-G	3	79	12	2	200	900	2	0.01
B23E79300B14-250-G	3	79	12	2	250	900	2	0.01
B23E79300B14-300-G	3	79	12	2	300	900	2	0.01
B23E79300B15-100-G	3	79	12	5	100	394	2	0.025
B23E79300B15-150-G	3	79	12	5	150	394	2	0.025
B23E79300B15-200-G	3	79	12	5	200	394	2	0.025
B23E79300B15-250-G	3	79	12	5	250	394	2	0.025
B23E79300B15-300-G	3	79	12	5	300	394	2	0.025
B23E79300B16-100-G	3	79	12	10	100	197	2	0.05
B23E79300B16-150-G	3	79	12	10	150	197	2	0.05
B23E79300B16-200-G	3	79	12	10	200	197	2	0.05
B23E79300B16-250-G	3	79	12	10	250	197	2	0.05
B23E79300B16-300-G	3	79	12	10	300	197	2	0.05
B23E57220B13-100-G	2.2	57	10	10	100	122	2	0.05
B23E57220B13-125-G	2.2	57	10	10	125	122	2	0.05
B23E57220B13-150-G	2.2	57	10	10	150	122	2	0.05
B23E57220B13-175-G	2.2	57	10	10	175	122	2	0.05
B23E57220B13-200-G	2.2	57	10	10	200	122	2	0.05
B23E57220B13-225-G	2.2	57	10	10	225	122	2	0.05
B23E57220B13-250-G	2.2	57	10	10	250	122	2	0.05
B23E57220B13-275-G	2.2	57	10	10	275	122	2	0.05
B23E57220B13-300-G	2.2	57	10	10	300	122	2	0.05

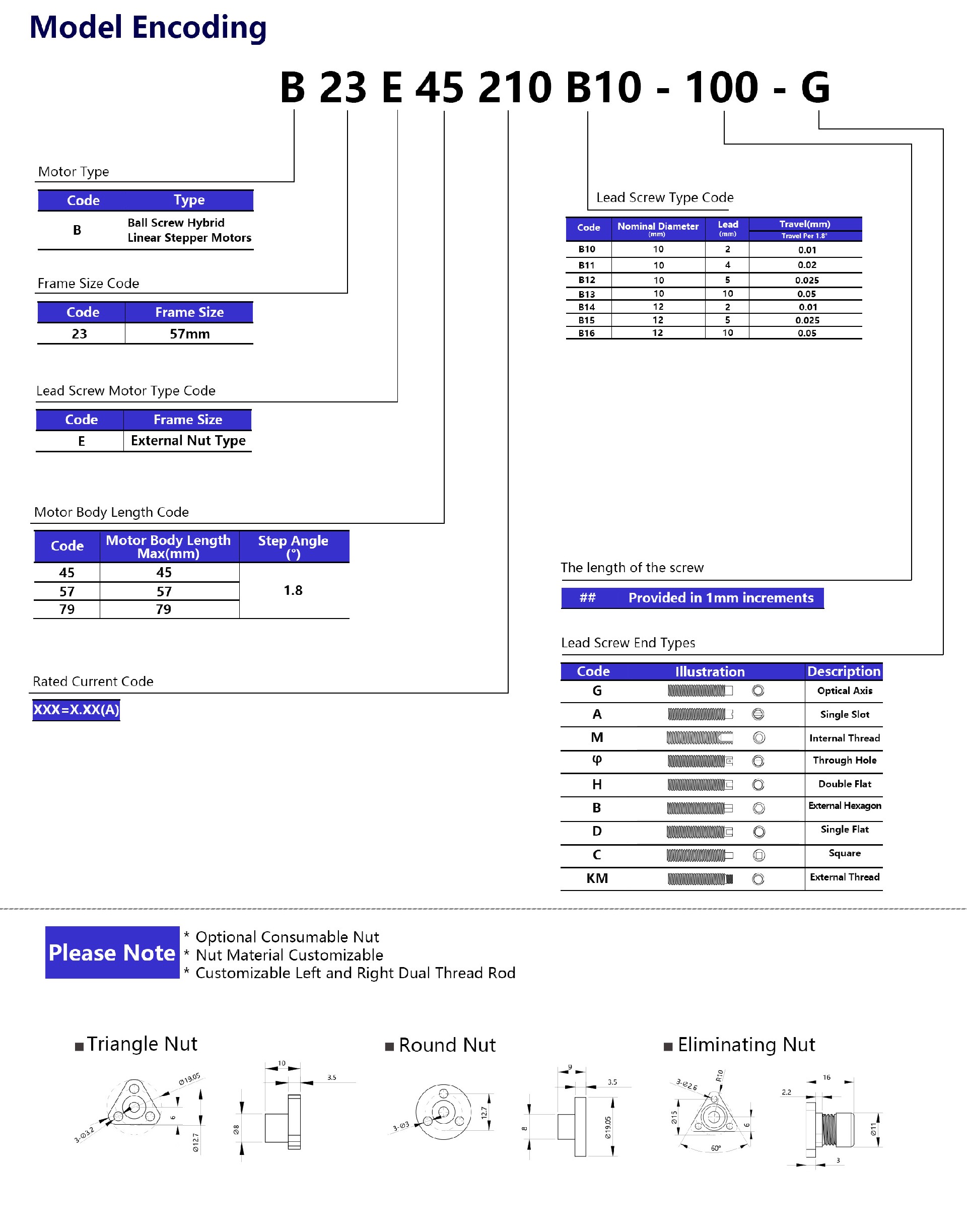

NEMA23 Ball Screw Hybrid Linear stepper Motors.jpg
