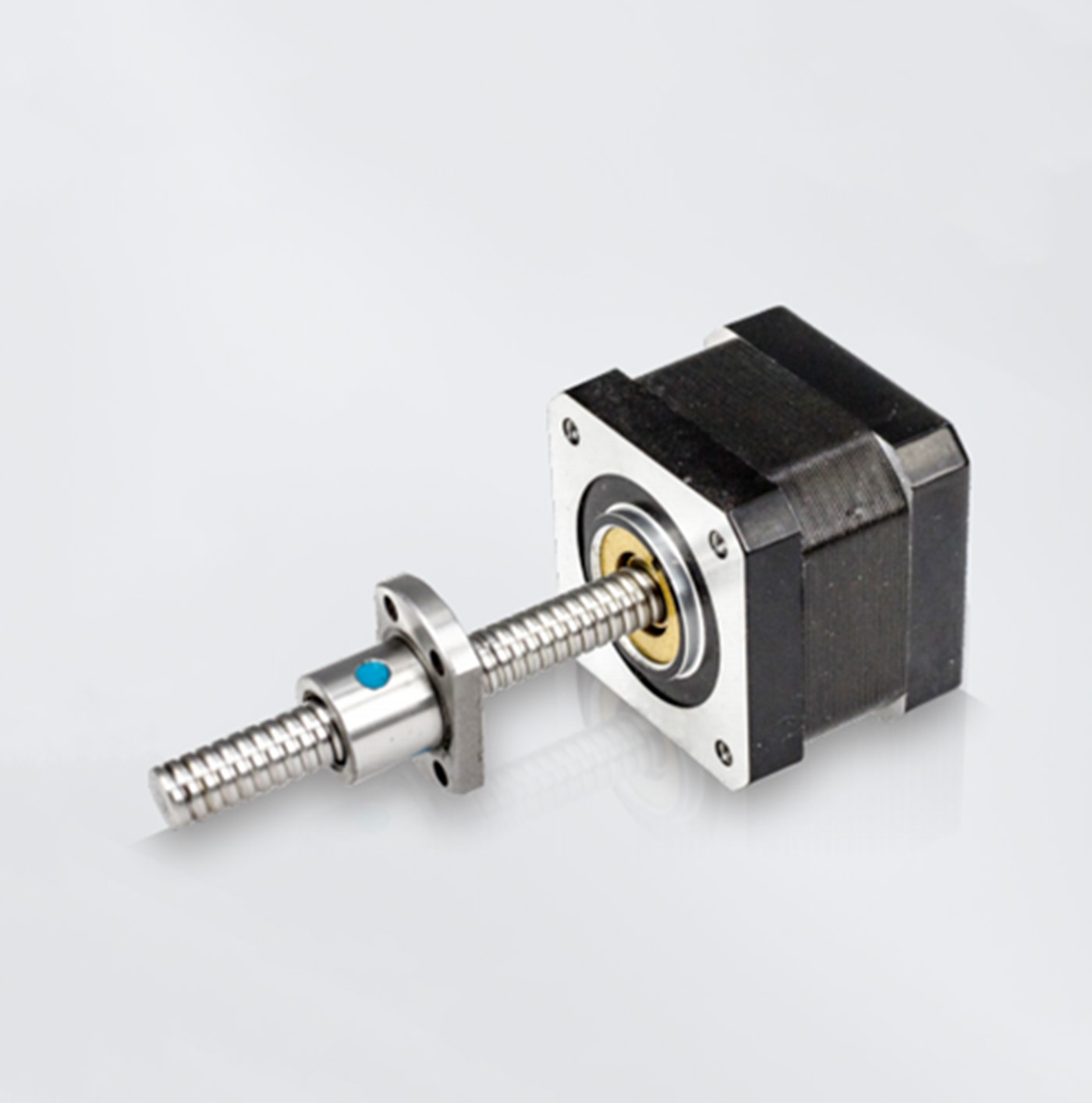

NEMA17, Extemal Nut Linear Stepper Motor Actuator, Ball Screw, the body length is available in 34mm, 40mm and48mm options. the resolution range is from 0.02 to 0.06mm. the maximum thrust can reach 320N. the screw lenathranges from 50 to 300mm.If you need the technical parameter drawing, please contact us, and we will send it to you as soon as possible.

Item	Rated Current (A)	Length (mm)	Screw Diameter (mm)	Screw Lead (mm)	Screw Length (mm)	Rated Thrust (N @ 300RPM)	Phase	Linear Travel per Step (mm)
B17E40200B5-75-G	2	39.8	8	1	75	300	2	0.005
B17E40200B5-100-G	2	39.8	8	1	100	300	2	0.005
B17E40200B5-125-G	2	39.8	8	1	125	300	2	0.005
B17E40200B5-150-G	2	39.8	8	1	150	300	2	0.005
B17E40200B5-175-G	2	39.8	8	1	175	300	2	0.005
B17E40200B5-200-G	2	39.8	8	1	200	300	2	0.005
B17E40200B5-225-G	2	39.8	8	1	225	300	2	0.005
B17E40200B5-250-G	2	39.8	8	1	250	300	2	0.005
B17E40200B6-75-G	2	39.8	8	2	75	300	2	0.01
B17E40200B6-100-G	2	39.8	8	2	100	300	2	0.01
B17E40200B6-125-G	2	39.8	8	2	125	300	2	0.01
B17E40200B6-150-G	2	39.8	8	2	150	300	2	0.01
B17E40200B6-175-G	2	39.8	8	2	175	300	2	0.01
B17E40200B6-200-G	2	39.8	8	2	200	300	2	0.01
B17E40200B6-225-G	2	39.8	8	2	225	300	2	0.01
B17E40200B6-250-G	2	39.8	8	2	250	300	2	0.01
B17E40200B8-75-G	2	39.8	8	5	75	113	2	0.005
B17E40200B8-100-G	2	39.8	8	5	100	113	2	0.005
B17E40200B8-125-G	2	39.8	8	5	125	113	2	0.005
B17E40200B8-150-G	2	39.8	8	5	150	113	2	0.005
B17E40200B8-175-G	2	39.8	8	5	175	113	2	0.005
B17E40200B8-200-G	2	39.8	8	5	200	113	2	0.005
B17E40200B8-225-G	2	39.8	8	5	225	113	2	0.005
B17E40200B8-250-G	2	39.8	8	5	250	113	2	0.005
B17E40200B9-75-G	2	39.8	8	8	75	90	2	0.04
B17E40200B9-100-G	2	39.8	8	8	100	90	2	0.04
B17E40200B9-125-G	2	39.8	8	8	125	90	2	0.04
B17E40200B9-150-G	2	39.8	8	8	150	90	2	0.04
B17E40200B9-175-G	2	39.8	8	8	175	90	2	0.04
B17E40200B9-200-G	2	39.8	8	8	200	90	2	0.04
B17E40200B9-225-G	2	39.8	8	8	225	90	2	0.04
B17E40200B9-250-G	2	39.8	8	8	250	90	2	0.04
B17E40200B10-75-G	2	39.8	10	2	75	300	2	0.01
B17E40200B10-100-G	2	39.8	10	2	100	300	2	0.01
B17E40200B10-150-G	2	39.8	10	2	150	300	2	0.01
B17E40200B10-200-G	2	39.8	10	2	200	300	2	0.01
B17E40200B10-250-G	2	39.8	10	2	250	300	2	0.01
B17E40200B11-75-G	2	39.8	10	4	75	113	2	0.02
B17E40200B11-100-G	2	39.8	10	4	100	113	2	0.02
B17E40200B11-150-G	2	39.8	10	4	150	113	2	0.02
B17E40200B11-200-G	2	39.8	10	4	200	113	2	0.02
B17E40200B11-250-G	2	39.8	10	4	250	113	2	0.02
B17E35150B6-75-G	1.5	35	8	2	75	150	2	0.01
B17E35150B6-100-G	1.5	35	8	2	100	150	2	0.01
B17E35150B6-150-G	1.5	35	8	2	150	150	2	0.01
B17E35150B6-200-G	1.5	35	8	2	200	150	2	0.01
B17E35150B6-250-G	1.5	35	8	2	250	150	2	0.01
B17E48200B5-75-G	2	48.3	8	1	75	300	2	0.005
B17E48200B5-100-G	2	48.3	8	1	100	300	2	0.005
B17E48200B5-125-G	2	48.3	8	1	125	300	2	0.005
B17E48200B5-150-G	2	48.3	8	1	150	300	2	0.005
B17E48200B5-175-G	2	48.3	8	1	175	300	2	0.005
B17E48200B5-200-G	2	48.3	8	1	200	300	2	0.005
B17E48200B5-225-G	2	48.3	8	1	225	300	2	0.005
B17E48200B5-250-G	2	48.3	8	1	250	300	2	0.005
B17E48200B6-75-G	2	48.3	8	2	75	300	2	0.01
B17E48200B6-100-G	2	48.3	8	2	100	300	2	0.01
B17E48200B6-125-G	2	48.3	8	2	125	300	2	0.01
B17E48200B6-150-G	2	48.3	8	2	150	300	2	0.01
B17E48200B6-175-G	2	48.3	8	2	175	300	2	0.01
B17E48200B6-200-G	2	48.3	8	2	200	300	2	0.01
B17E48200B6-225-G	2	48.3	8	2	225	300	2	0.01
B17E48200B6-250-G	2	48.3	8	2	250	300	2	0.01
B17E48200B8-75-G	2	48.3	8	5	75	154	2	0.005
B17E48200B8-100-G	2	48.3	8	5	100	154	2	0.005
B17E48200B8-125-G	2	48.3	8	5	125	154	2	0.005
B17E48200B8-150-G	2	48.3	8	5	150	154	2	0.005
B17E48200B8-175-G	2	48.3	8	5	175	154	2	0.005
B17E48200B8-200-G	2	48.3	8	5	200	154	2	0.005
B17E48200B8-225-G	2	48.3	8	5	225	154	2	0.005
B17E48200B8-250-G	2	48.3	8	5	250	154	2	0.005
B17E48200B9-75-G	2	48.3	8	8	75	150	2	0.04
B17E48200B9-100-G	2	48.3	8	8	100	150	2	0.04
B17E48200B9-125-G	2	48.3	8	8	125	150	2	0.04
B17E48200B9-150-G	2	48.3	8	8	150	150	2	0.04
B17E48200B9-175-G	2	48.3	8	8	175	150	2	0.04
B17E48200B9-200-G	2	48.3	8	8	200	150	2	0.04
B17E48200B9-225-G	2	48.3	8	8	225	150	2	0.04
B17E48200B9-250-G	2	48.3	8	8	250	150	2	0.04
B17E48200B10-75-G	2	48.3	10	2	75	300	2	0.01
B17E48200B10-100-G	2	48.3	10	2	100	300	2	0.01
B17E48200B10-150-G	2	48.3	10	2	150	300	2	0.01
B17E48200B10-200-G	2	48.3	10	2	200	300	2	0.01
B17E48200B10-250-G	2	48.3	10	2	250	300	2	0.01
B17E48200B11-75-G	2	48.3	10	4	75	150	2	0.02
B17E48200B11-100-G	2	48.3	10	4	100	150	2	0.02
B17E48200B11-150-G	2	48.3	10	4	150	150	2	0.02
B17E48200B11-200-G	2	48.3	10	4	200	150	2	0.02
B17E48200B11-250-G	2	48.3	10	4	250	150	2	0.02

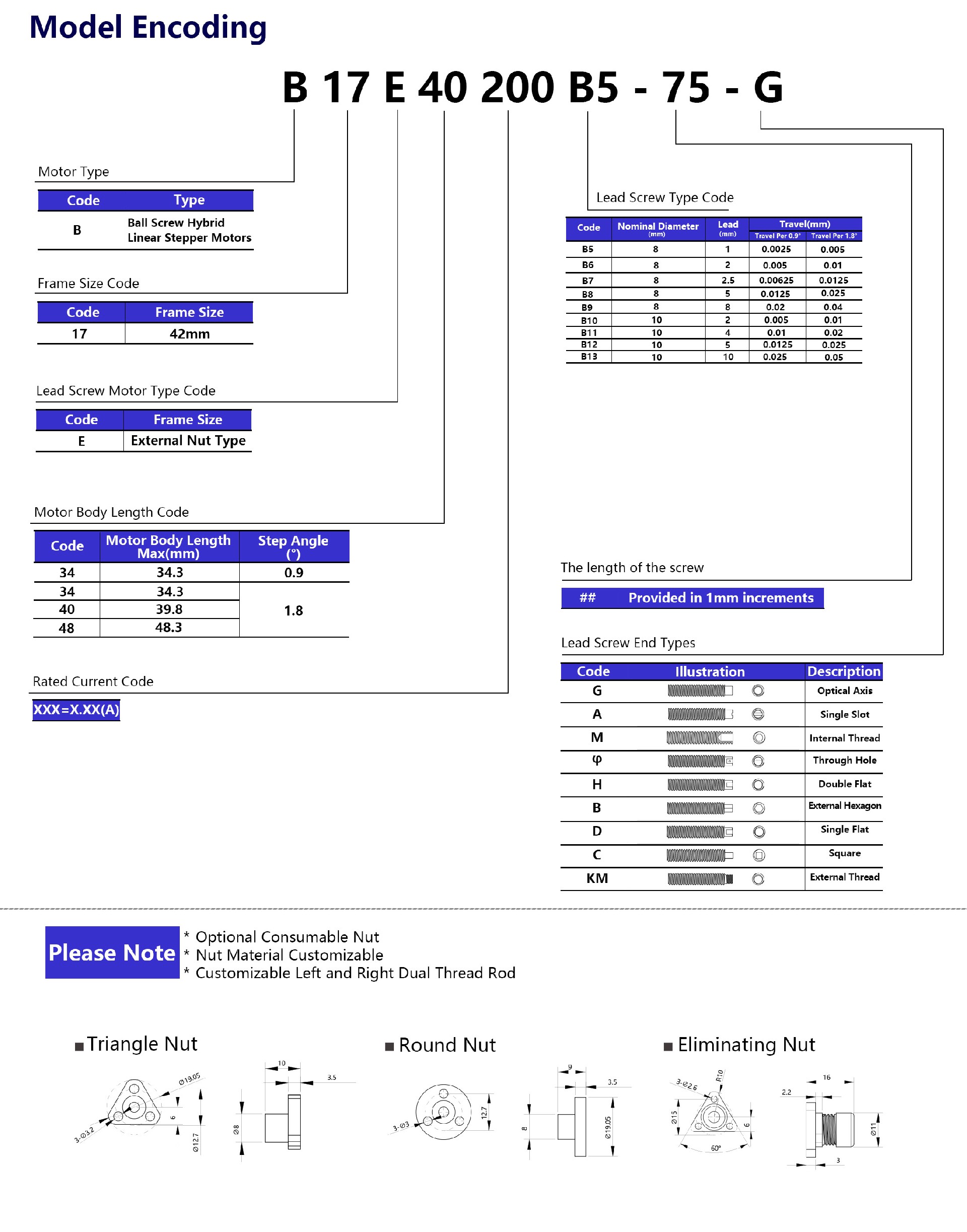

NEMA17 Ball screw Hybrid Linear Stepper Motors1.jpg
