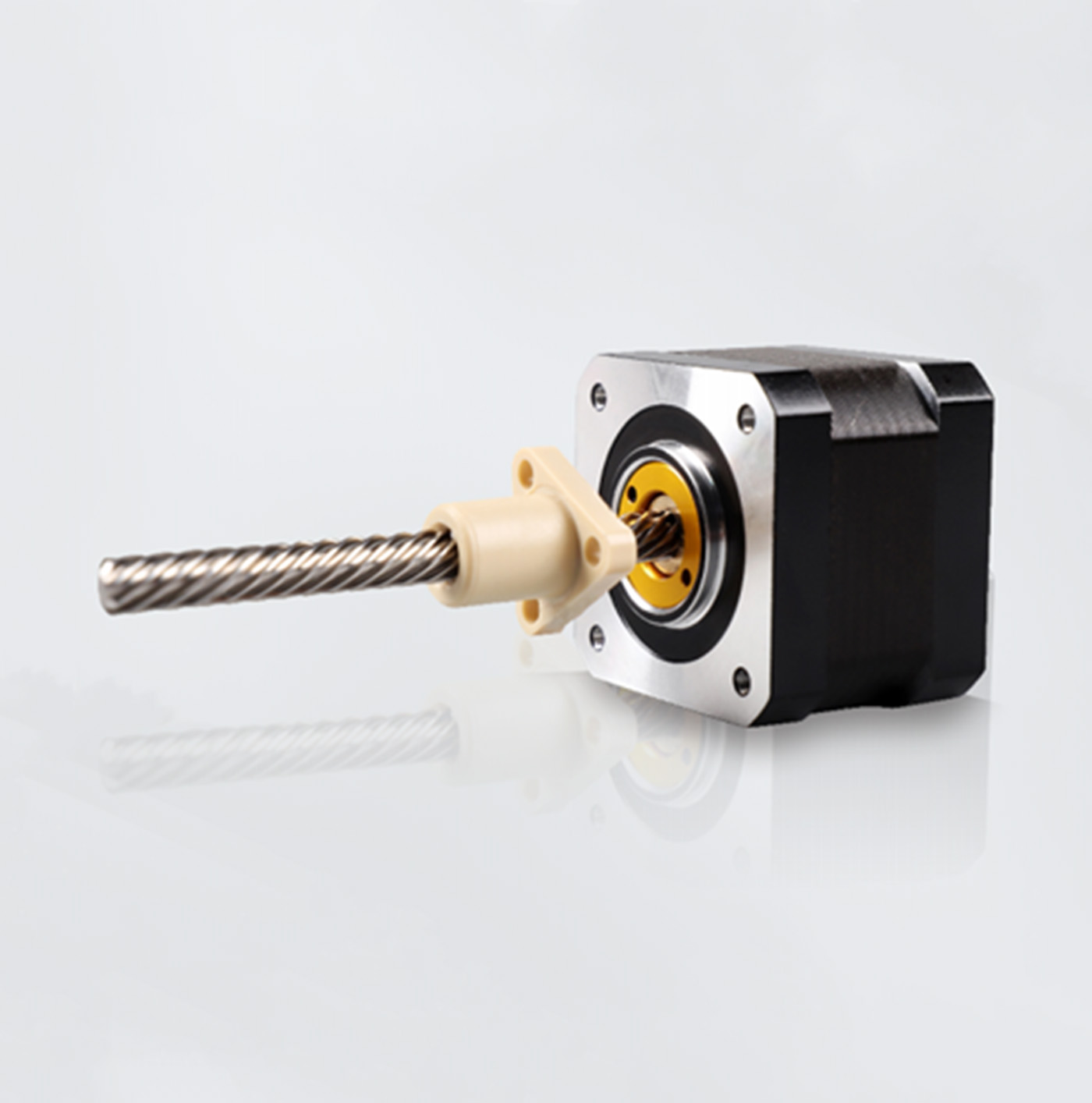

NEMA17, External Nut linear stepper motors actuator, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.If you need the technical parameter drawing, please contact us, and we will send it to you as soon as possible.

Item	Phase	Length (mm)	Screw Length (mm)	Screw Diameter (mm)	Screw Lead (mm)	Linear Travel per Step (mm)	Rated Thrust (N @ 300RPM)	Rated Current (A)
17E34100T7-50-G	2	34.3	50	8	4	0.02	78	1
17E34100T9-200-G	2	34.3	200	8	8	0.04	38	1
17E34065T4-50-G	2	34.3	50	8	1.25	0.00625	112	0.65
17E34065T4-75-G	2	34.3	75	8	1.25	0.00625	112	0.65
17E34065T4-100-G	2	34.3	100	8	1.25	0.00625	112	0.65
17E34065T4-125-G	2	34.3	125	8	1.25	0.00625	112	0.65
17E34065T4-150-G	2	34.3	150	8	1.25	0.00625	112	0.65
17E34065T4-200-G	2	34.3	200	8	1.25	0.00625	112	0.65
17E34065T4-250-G	2	34.3	250	8	1.25	0.00625	112	0.65
17E34065T4-300-G	2	34.3	300	8	1.25	0.00625	112	0.65
17E34065T7-50-G	2	34.3	50	8	4	0.02	60	0.65
17E34065T7-75-G	2	34.3	75	8	4	0.02	60	0.65
17E34065T7-100-G	2	34.3	100	8	4	0.02	60	0.65
17E34065T7-125-G	2	34.3	125	8	4	0.02	60	0.65
17E34065T7-150-G	2	34.3	150	8	4	0.02	60	0.65
17E34065T7-200-G	2	34.3	200	8	4	0.02	60	0.65
17E34065T7-250-G	2	34.3	250	8	4	0.02	60	0.65
17E34065T7-300-G	2	34.3	300	8	4	0.02	60	0.65
17E34065T9-50-G	2	34.3	50	8	8	0.04	34	0.65
17E34065T9-75-G	2	34.3	75	8	8	0.04	34	0.65
17E34065T9-100-G	2	34.3	100	8	8	0.04	34	0.65
17E34065T9-125-G	2	34.3	125	8	8	0.04	34	0.65
17E34065T9-150-G	2	34.3	150	8	8	0.04	34	0.65
17E34065T9-200-G	2	34.3	200	8	8	0.04	34	0.65
17E34065T9-250-G	2	34.3	250	8	8	0.04	34	0.65
17E34065T9-300-G	2	34.3	300	8	8	0.04	34	0.65
17E34150T4-50-G	2	34.3	50	8	1.25	0.00625	135	1.5
17E34150T4-75-G	2	34.3	75	8	1.25	0.00625	135	1.5
17E34150T4-100-G	2	34.3	100	8	1.25	0.00625	135	1.5
17E34150T4-125-G	2	34.3	125	8	1.25	0.00625	135	1.5
17E34150T4-150-G	2	34.3	150	8	1.25	0.00625	135	1.5
17E34200T4-200-G	2	34.3	200	8	1.25	0.00625	135	1.5
17E34250T4-250-G	2	34.3	250	8	1.25	0.00625	135	1.5
17E34300T4-300-G	2	34.3	300	8	1.25	0.00625	135	1.5
17E34150T7-50-G	2	34.3	50	8	4	0.02	73	1.5
17E34150T7-75-G	2	34.3	75	8	4	0.02	73	1.5
17E34150T7-100-G	2	34.3	100	8	4	0.02	73	1.5
17E34150T7-125-G	2	34.3	125	8	4	0.02	73	1.5
17E34150T7-150-G	2	34.3	150	8	4	0.02	73	1.5
17E34150T7-200-G	2	34.3	200	8	4	0.02	73	1.5
17E34150T7-250-G	2	34.3	250	8	4	0.02	73	1.5
17E34150T7-300-G	2	34.3	300	8	4	0.02	73	1.5
17E34150T9-50-G	2	34.3	50	8	8	0.04	42	1.5
17E34150T9-75-G	2	34.3	75	8	8	0.04	42	1.5
17E34150T9-100-G	2	34.3	100	8	8	0.04	42	1.5
17E34150T9-125-G	2	34.3	125	8	8	0.04	42	1.5
17E34150T9-150-G	2	34.3	150	8	8	0.04	42	1.5
17E34150T9-190-G	2	34.3	190	8	8	0.04	42	1.5
17E34150T9-200-G	2	34.3	200	8	8	0.04	42	1.5
17E34150T9-250-G	2	34.3	250	8	8	0.04	42	1.5
17E34150T9-300-G	2	34.3	300	8	8	0.04	42	1.5
17E40100T4-50-G	2	39.8	50	8	1.25	0.00625	145	1
17E40100T4-75-G	2	39.8	75	8	1.25	0.00625	145	1
17E40100T4-100-G	2	39.8	100	8	1.25	0.00625	145	1
17E40100T4-125-G	2	39.8	125	8	1.25	0.00625	145	1
17E40100T4-150-G	2	39.8	150	8	1.25	0.00625	145	1
17E40100T4-200-G	2	39.8	200	8	1.25	0.00625	145	1
17E40100T4-250-G	2	39.8	250	8	1.25	0.00625	145	1
17E40100T4-300-G	2	39.8	300	8	1.25	0.00625	145	1
17E40100T7-50-G	2	39.8	50	8	4	0.02	78	1
17E40100T7-75-G	2	39.8	75	8	4	0.02	78	1
17E40100T7-100-G	2	39.8	100	8	4	0.02	78	1
17E40100T7-125-G	2	39.8	125	8	4	0.02	78	1
17E40100T7-150-G	2	39.8	150	8	4	0.02	78	1
17E40100T7-200-G	2	39.8	200	8	4	0.02	78	1
17E40100T7-250-G	2	39.8	250	8	4	0.02	78	1
17E40100T7-300-G	2	39.8	300	8	4	0.02	78	1
17E40100T9-50-G	2	39.8	50	8	8	0.04	45	1
17E40100T9-75-G	2	39.8	75	8	8	0.04	45	1
17E40100T9-100-G	2	39.8	100	8	8	0.04	45	1
17E40100T9-125-G	2	39.8	125	8	8	0.04	45	1
17E40100T9-150-G	2	39.8	150	8	8	0.04	45	1
17E40100T9-200-G	2	39.8	200	8	8	0.04	45	1
17E40100T9-250-G	2	39.8	250	8	8	0.04	45	1
17E40100T9-300-G	2	39.8	300	8	8	0.04	45	1
17E40200T4-50-G	2	39.8	50	8	1.25	0.00625	175	2
17E40200T4-75-G	2	39.8	75	8	1.25	0.00625	175	2
17E40200T4-100-G	2	39.8	100	8	1.25	0.00625	175	2
17E40200T4-125-G	2	39.8	125	8	1.25	0.00625	175	2
17E40200T4-150-G	2	39.8	150	8	1.25	0.00625	175	2
17E40200T4-200-G	2	39.8	200	8	1.25	0.00625	175	2
17E40200T4-250-G	2	39.8	250	8	1.25	0.00625	175	2
17E40200T4-300-G	2	39.8	300	8	1.25	0.00625	175	2
17E40200T7-50-G	2	39.8	50	8	4	0.02	94	2
17E40200T7-75-G	2	39.8	75	8	4	0.02	94	2
17E40200T7-100-G	2	39.8	100	8	4	0.02	94	2
17E40200T7-125-G	2	39.8	125	8	4	0.02	94	2
17E40200T7-150-G	2	39.8	150	8	4	0.02	94	2
17E40200T7-200-G	2	39.8	200	8	4	0.02	94	2
17E40200T7-250-G	2	39.8	250	8	4	0.02	94	2
17E40200T7-300-G	2	39.8	300	8	4	0.02	94	2
17E40200T9-50-G	2	39.8	50	8	8	0.04	54	2
17E40200T9-75-G	2	39.8	75	8	8	0.04	54	2
17E40200T9-100-G	2	39.8	100	8	8	0.04	54	2
17E40200T9-125-G	2	39.8	125	8	8	0.04	54	2
17E40200T9-150-G	2	39.8	150	8	8	0.04	54	2
17E40200T9-200-G	2	39.8	200	8	8	0.04	54	2
17E40200T9-250-G	2	39.8	250	8	8	0.04	54	2
17E40200T9-300-G	2	39.8	300	8	8	0.04	54	2
17E48100T4-50-G	2	48.3	50	8	1.25	0.00625	182	1
17E48100T4-75-G	2	48.3	75	8	1.25	0.00625	182	1
17E48100T4-100-G	2	48.3	100	8	1.25	0.00625	182	1
17E48100T4-125-G	2	48.3	125	8	1.25	0.00625	182	1
17E48100T4-150-G	2	48.3	150	8	1.25	0.00625	182	1
17E48100T4-200-G	2	48.3	200	8	1.25	0.00625	182	1
17E48100T4-250-G	2	48.3	250	8	1.25	0.00625	182	1
17E48100T4-300-G	2	48.3	300	8	1.25	0.00625	182	1
17E48100T7-50-G	2	48.3	50	8	4	0.02	97	1
17E48100T7-75-G	2	48.3	75	8	4	0.02	97	1
17E48100T7-100-G	2	48.3	100	8	4	0.02	97	1
17E48100T7-125-G	2	48.3	125	8	4	0.02	97	1
17E48100T7-150-G	2	48.3	150	8	4	0.02	97	1
17E48100T7-200-G	2	48.3	200	8	4	0.02	97	1
17E48100T7-250-G	2	48.3	250	8	4	0.02	97	1
17E48100T7-300-G	2	48.3	300	8	4	0.02	97	1
17E48100T9-50-G	2	48.3	50	8	8	0.04	56	1
17E48100T9-75-G	2	48.3	75	8	8	0.04	56	1
17E48100T9-100-G	2	48.3	100	8	8	0.04	56	1
17E48100T9-125-G	2	48.3	125	8	8	0.04	56	1
17E48100T9-150-G	2	48.3	150	8	8	0.04	56	1
17E48100T9-200-G	2	48.3	200	8	8	0.04	56	1
17E48100T9-250-G	2	48.3	250	8	8	0.04	56	1
17E48100T9-300-G	2	48.3	300	8	8	0.04	56	1
17E48100T12-50-G	2	48.3	50	10	10.5	0.0525	49	1
17E48100T12-75-G	2	48.3	75	10	10.5	0.0525	49	1
17E48100T12-100-G	2	48.3	100	10	10.5	0.0525	49	1
17E48100T12-125-G	2	48.3	125	10	10.5	0.0525	49	1
17E48100T12-150-G	2	48.3	150	10	10.5	0.0525	49	1
17E48100T12-200-G	2	48.3	200	10	10.5	0.0525	49	1
17E48100T12-250-G	2	48.3	250	10	10.5	0.0525	49	1
17E48100T12-300-G	2	48.3	300	10	10.5	0.0525	49	1
17E48200T4-50-G	2	48.3	50	8	1.25	0.00625	240	2
17E48200T4-75-G	2	48.3	75	8	1.25	0.00625	240	2
17E48200T4-100-G	2	48.3	100	8	1.25	0.00625	240	2
17E48200T4-125-G	2	48.3	125	8	1.25	0.00625	240	2
17E48200T4-150-G	2	48.3	150	8	1.25	0.00625	240	2
17E48200T4-200-G	2	48.3	200	8	1.25	0.00625	240	2
17E48200T4-250-G	2	48.3	250	8	1.25	0.00625	240	2
17E48200T4-300-G	2	48.3	300	8	1.25	0.00625	240	2
17E48200T7-50-G	2	48.3	50	8	4	0.02	129	2
17E48200T7-75-G	2	48.3	75	8	4	0.02	129	2
17E48200T7-100-G	2	48.3	100	8	4	0.02	129	2
17E48200T7-125-G	2	48.3	125	8	4	0.02	129	2
17E48200T7-150-G	2	48.3	150	8	4	0.02	129	2
17E48200T7-200-G	2	48.3	200	8	4	0.02	129	2
17E48200T7-250-G	2	48.3	250	8	4	0.02	129	2
17E48200T7-300-G	2	48.3	300	8	4	0.02	129	2
17E48200T9-50-G	2	48.3	50	8	8	0.04	70	2
17E48200T9-75-G	2	48.3	75	8	8	0.04	70	2
17E48200T9-100-G	2	48.3	100	8	8	0.04	70	2
17E48200T9-125-G	2	48.3	125	8	8	0.04	70	2
17E48200T9-150-G	2	48.3	150	8	8	0.04	70	2
17E48200T9-200-G	2	48.3	200	8	8	0.04	70	2
17E48200T9-250-G	2	48.3	250	8	8	0.04	70	2
17E48200T9-300-G	2	48.3	300	8	8	0.04	70	2
17E48200T12-50-G	2	48.3	50	10	10.5	0.0525	65	2
17E48200T12-75-G	2	48.3	75	10	10.5	0.0525	65	2
17E48200T12-100-G	2	48.3	100	10	10.5	0.0525	65	2
17E48200T12-125-G	2	48.3	125	10	10.5	0.0525	65	2
17E48200T12-150-G	2	48.3	150	10	10.5	0.0525	65	2
17E48200T12-200-G	2	48.3	200	10	10.5	0.0525	65	2
17E48200T12-250-G	2	48.3	250	10	10.5	0.0525	65	2
17E48200T12-300-G	2	48.3	300	10	10.5	0.0525	65	2

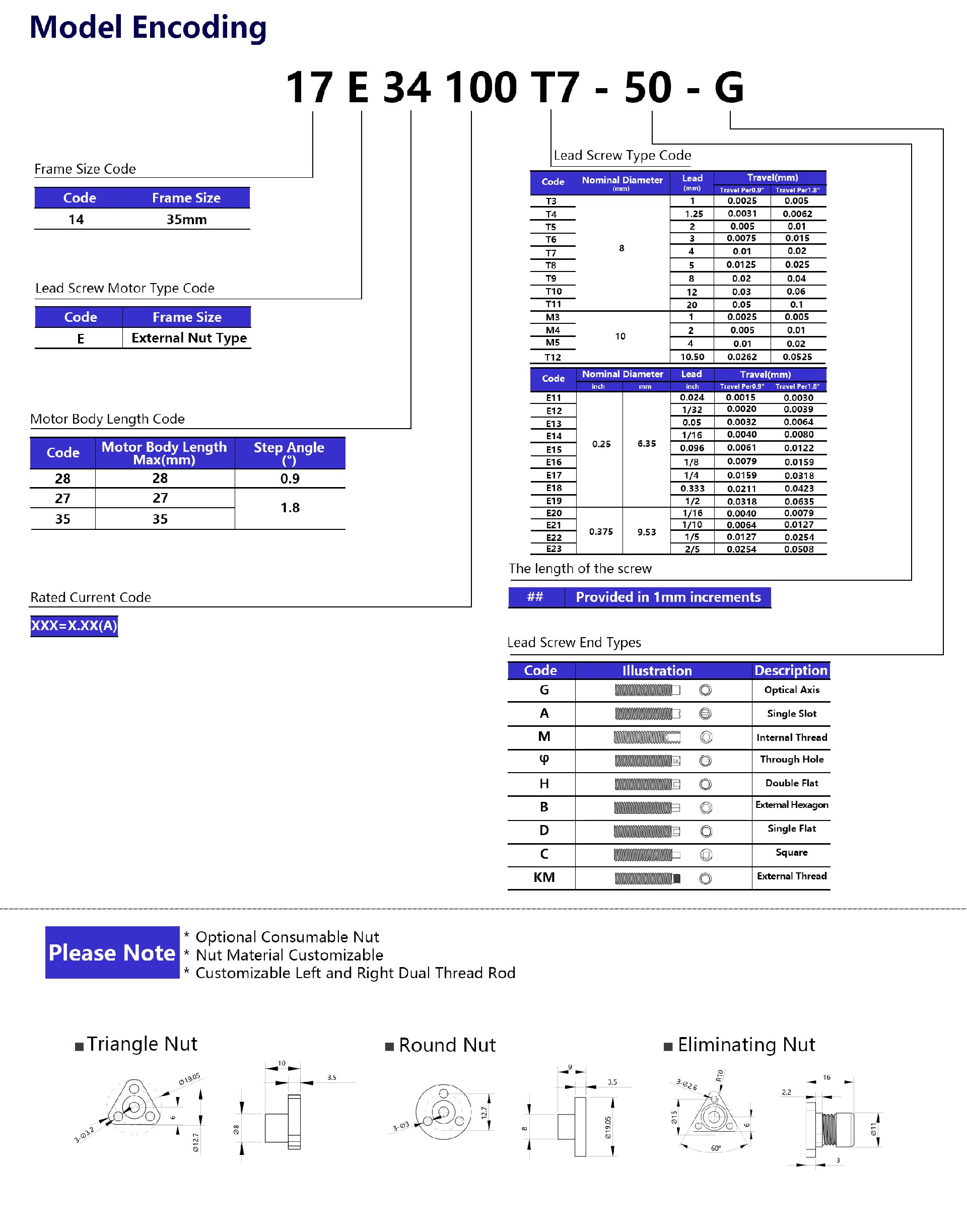

NEMA17 External Nut Linear stepper Motors.jpg
