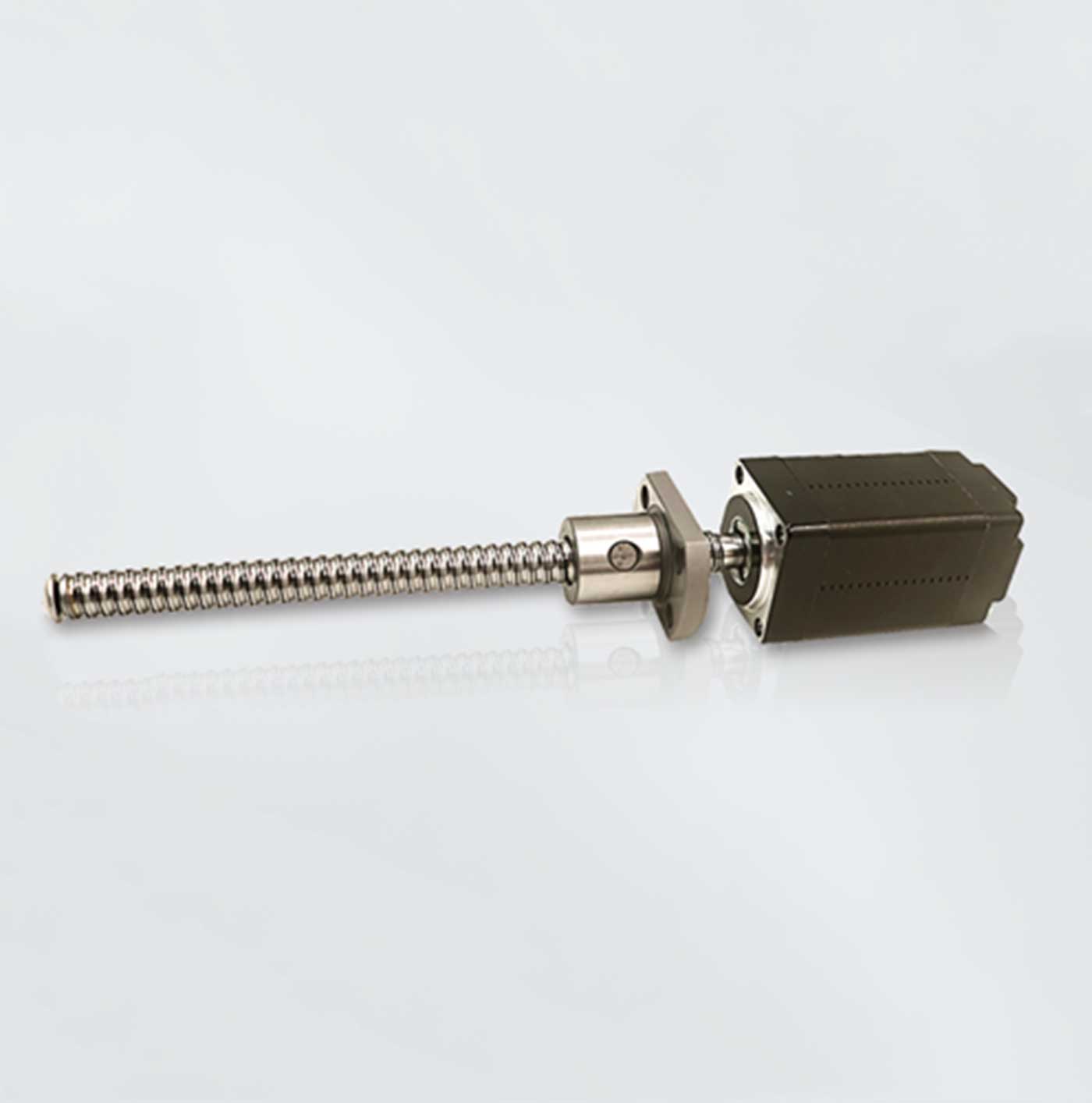

NEMA11, External Nut Linear Stepper Motor Actuator, Ball Screw, the optional body lengths are 32mm and 52mm. The resolution range is from 0.005 to 0.0635mm, and the maximum thrust can reach 135N. The screw length range is from 50 to 200mm.If you need the technical parameter drawing, please contact us, and we will send it to you as soon as possible.
| Item | Rated Current (A) | Length (mm) | Screw Diameter (mm) | Screw Lead (mm) | Screw Length (mm) | Rated Thrust (N @ 300RPM) | Phase | Linear Travel per Step (mm) |
| B11E32100B2-50-G | 1 | 32 | 6 | 1 | 50 | 140 | 2 | 0.005 |
| B11E32100B2-75-G | 1 | 32 | 6 | 1 | 75 | 140 | 2 | 0.005 |
| B11E32100B2-100-G | 1 | 32 | 6 | 1 | 100 | 140 | 2 | 0.005 |
| B11E32100B2-125-G | 1 | 32 | 6 | 1 | 125 | 140 | 2 | 0.005 |
| B11E32100B2-150-G | 1 | 32 | 6 | 1 | 150 | 140 | 2 | 0.005 |
| B11E32100B3-50-G | 1 | 32 | 6 | 2 | 50 | 75 | 2 | 0.01 |
| B11E32100B3-75-G | 1 | 32 | 6 | 2 | 75 | 75 | 2 | 0.01 |
| B11E32100B3-100-G | 1 | 32 | 6 | 2 | 100 | 75 | 2 | 0.01 |
| B11E32100B3-125-G | 1 | 32 | 6 | 2 | 125 | 75 | 2 | 0.01 |
| B11E32100B3-150-G | 1 | 32 | 6 | 2 | 150 | 75 | 2 | 0.01 |
| B11E32100B4-50-G | 1 | 32 | 6 | 6 | 50 | 25 | 2 | 0.03 |
| B11E32100B4-75-G | 1 | 32 | 6 | 6 | 75 | 25 | 2 | 0.03 |
| B11E32100B4-100-G | 1 | 32 | 6 | 6 | 100 | 25 | 2 | 0.03 |
| B11E32100B4-125-G | 1 | 32 | 6 | 6 | 125 | 25 | 2 | 0.03 |
| B11E32100B4-150-G | 1 | 32 | 6 | 6 | 150 | 25 | 2 | 0.03 |
