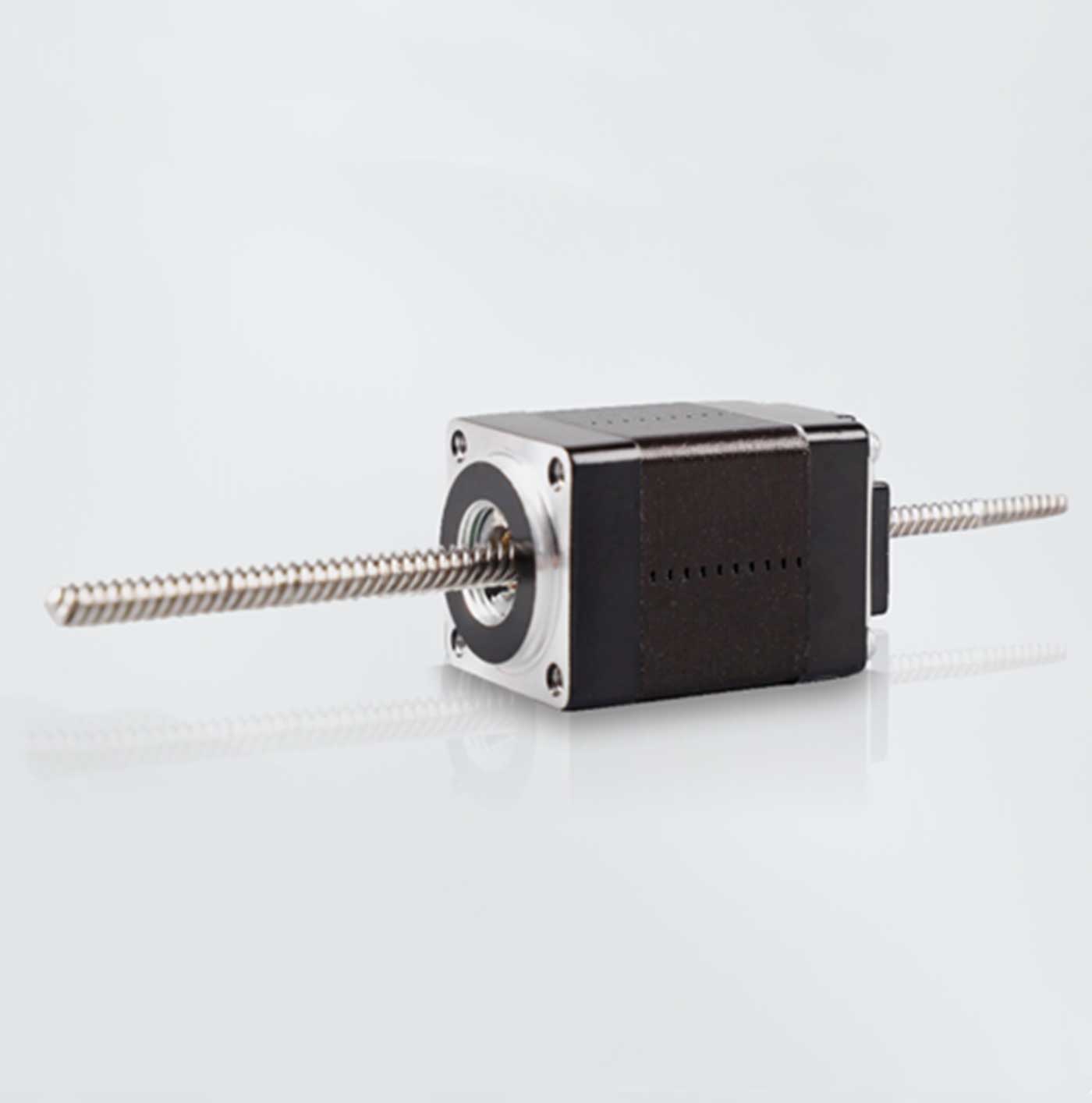

NEMA11, Non-captive linear stepper motor actuators, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.If you need the technical parameter drawing, please contact us, and we will send it to you as soon as possible.

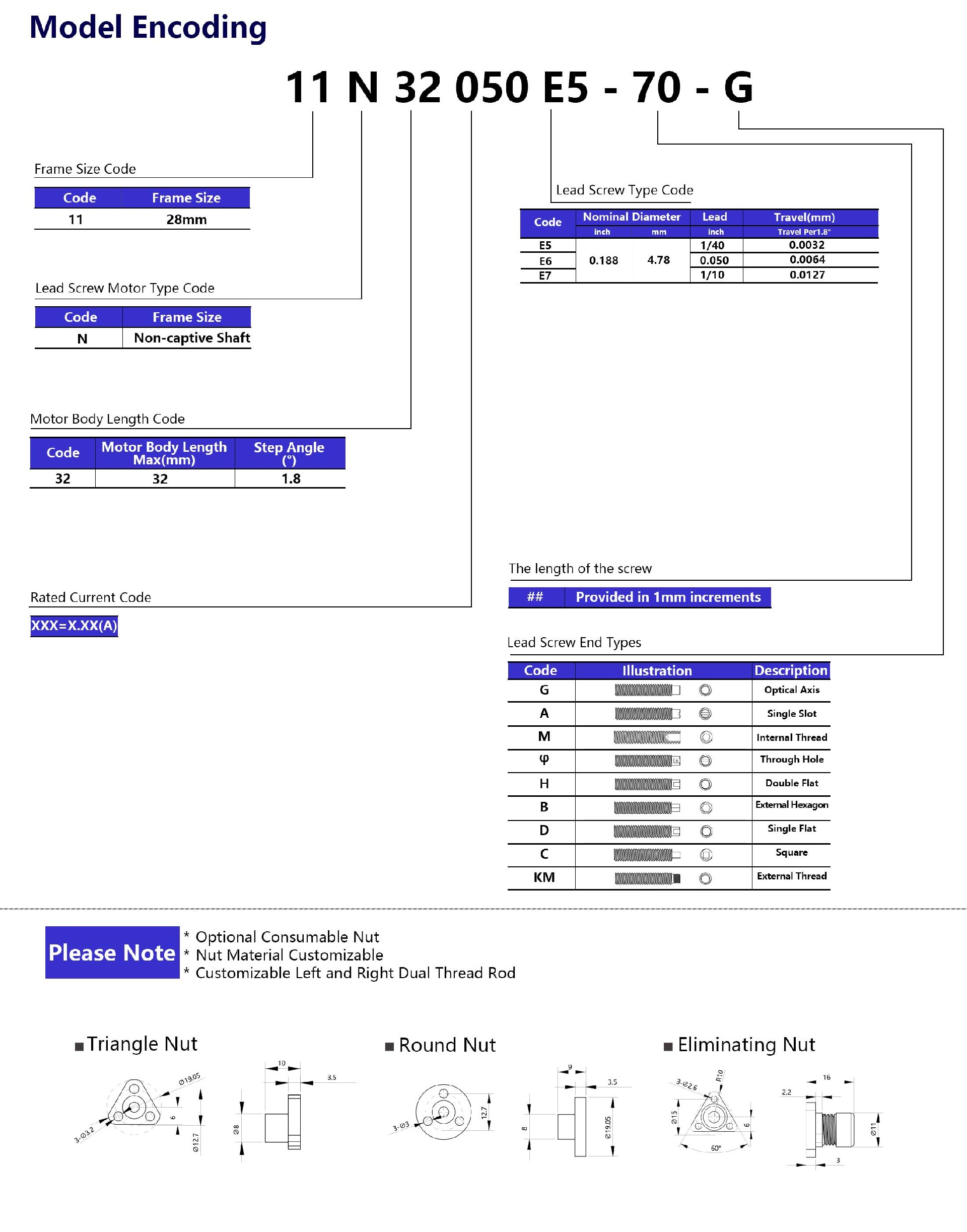

Item	Rated Current (A)	Length (mm)	Screw Diameter (mm)	Screw Lead (mm)	Screw Length (mm)	Rated Thrust (N @ 300RPM)	Phase	Linear Travel per Step (mm)
11N32050E5-70-G	0.5	32	4.76	0.635	70	51	2	0.0032
11N32050E5-80-G	0.5	32	4.76	0.635	80	51	2	0.0032
11N32050E5-90-G	0.5	32	4.76	0.635	90	51	2	0.0032
11N32050E5-100-G	0.5	32	4.76	0.635	100	51	2	0.0032
11N32050E5-110-G	0.5	32	4.76	0.635	110	51	2	0.0032
11N32050E5-125-G	0.5	32	4.76	0.635	125	51	2	0.0032
11N32050E5-150-G	0.5	32	4.76	0.635	150	51	2	0.0032
11N32050E5-180-G	0.5	32	4.76	0.635	180	51	2	0.0032
11N32050E5-200-G	0.5	32	4.76	0.635	200	51	2	0.0032
11N32050E7-70-G	0.5	32	4.76	2.54	70	27	2	0.0127
11N32050E7-80-G	0.5	32	4.76	2.54	80	27	2	0.0127
11N32050E7-90-G	0.5	32	4.76	2.54	90	27	2	0.0127
11N32050E7-100-G	0.5	32	4.76	2.54	100	27	2	0.0127
11N32050E7-110-G	0.5	32	4.76	2.54	110	27	2	0.0127
11N32050E7-125-G	0.5	32	4.76	2.54	125	27	2	0.0127
11N32050E7-150-G	0.5	32	4.76	2.54	150	27	2	0.0127
11N32050E7-180-G	0.5	32	4.76	2.54	180	27	2	0.0127
11N32050E7-200-G	0.5	32	4.76	2.54	200	27	2	0.0127
11N32100E5-70-G	1	32	4.76	0.635	70	53	2	0.0032
11N32100E5-80-G	1	32	4.76	0.635	80	53	2	0.0032
11N32100E5-90-G	1	32	4.76	0.635	90	53	2	0.0032
11N32100E5-100-G	1	32	4.76	0.635	100	53	2	0.0032
11N32100E5-110-G	1	32	4.76	0.635	110	53	2	0.0032
11N32100E5-125-G	1	32	4.76	0.635	125	53	2	0.0032
11N32100E5-150-G	1	32	4.76	0.635	150	53	2	0.0032
11N32100E5-180-G	1	32	4.76	0.635	180	53	2	0.0032
11N32100E5-200-G	1	32	4.76	0.635	200	53	2	0.0032
11N32100E7-70-G	1	32	4.76	2.54	70	27	2	0.0127
11N32100E7-80-G	1	32	4.76	2.54	80	27	2	0.0127
11N32100E7-90-G	1	32	4.76	2.54	90	27	2	0.0127
11N32100E7-100-G	1	32	4.76	2.54	100	27	2	0.0127
11N32100E7-110-G	1	32	4.76	2.54	110	27	2	0.0127
11N32100E7-125-G	1	32	4.76	2.54	125	27	2	0.0127
11N32100E7-150-G	1	32	4.76	2.54	150	27	2	0.0127
11N32100E7-180-G	1	32	4.76	2.54	180	27	2	0.0127
11N32100E7-200-G	1	32	4.76	2.54	200	27	2	0.0127
